In Stock: George Town Hub
IDEALCommercial & Industrial Valves

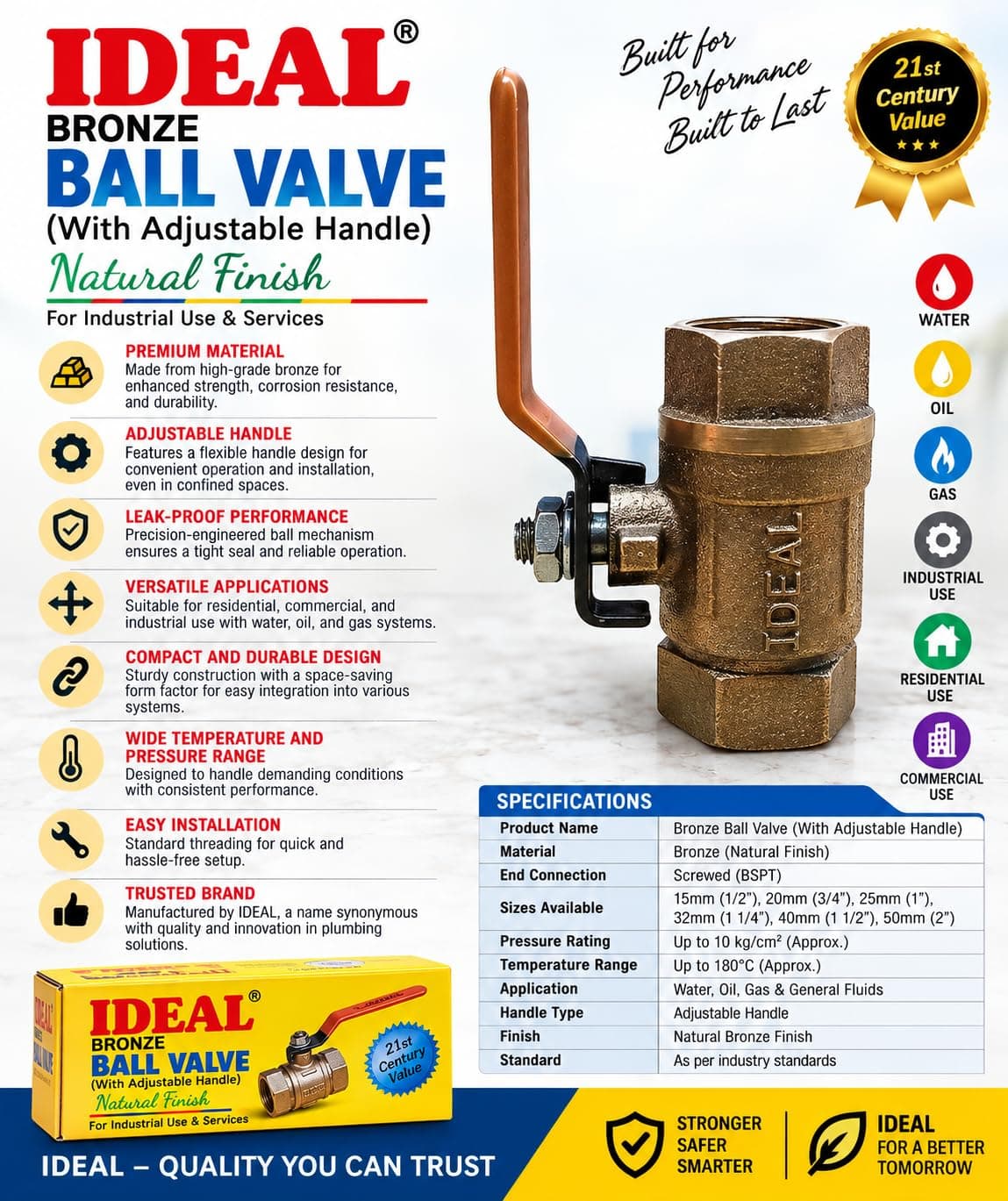

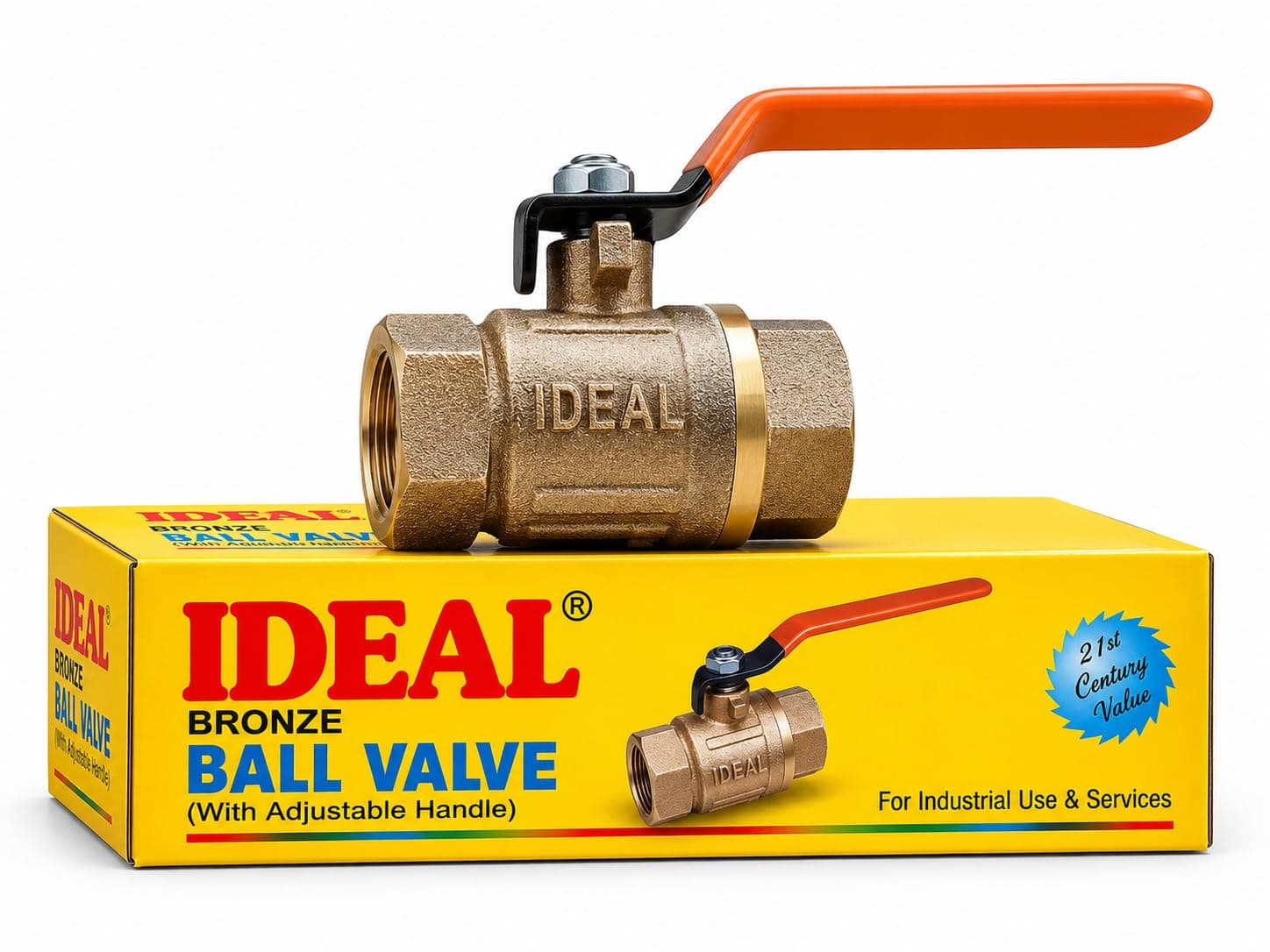

IDEAL® Bronze Ball Valve (With Adjustable Handle)
SKU: SKU-IDL-BV-ALLModel: IDL-BV-ADJCode: SSH-VLV-IDL-003
Full-bore bronze quarter-turn ball valve featuring an adjustable flexible handle for confined spaces, compliant with ANSI, ASME, and ASTM standards.
Tested Commercial Grade
Direct Dispatch from George Town / Parrys Hub
Technical Properties & Specifications
Source Verified Parameters
Technical Specifications7 Parameters
Valve TypeFull-Bore Quarter-Turn Ball Valve
Available Sizes15mm (1/2"), 20mm (3/4"), 25mm (1"), 32mm (1 1/4"), 40mm (1 1/2"), 50mm (2")
Body MaterialHigh-Grade Bronze (Natural Finish)
Handle TypeAdjustable Multi-Angle Steel Lever Handle
Ball & SeatChrome-Plated Solid Brass / PTFE Seats
Standards MetANSI B16.11, ASME B16.34, ASTM, MSS SP 25/67/72, NSF, UPC
Working PressurePN 25 (360 PSI)
Procurement & Commercial5 Parameters
Approved MakesIDEAL
Brand AvailabilityIDEAL / Sunrise Sanitary & Hardwares
ManufacturerIDEAL
Packer & StockistSunrise Sanitary & Hardwares, Sembudoss St, Chennai - 600001
Amazon ASIN ReferenceB0DNWDF2HH (15mm Specimen)
Additional Technical CharacteristicsExtended CMS Parameters
Key Feature 1
High-grade bronze body for exceptional mechanical strength and corrosion resistance.Verified Source
Key Feature 2
Flexible adjustable handle design for easy operation in tight, restricted spaces.Verified Source
Key Feature 3
Precision-machined chrome-plated solid ball with virgin PTFE seats for tight shutoff.Verified Source
Key Feature 4
Multi-standard compliance: ANSI B16.11, ASME B16.34, ASTM, MSS SP 25/67/72, NSF, UPC.Verified Source
Key Feature 5
Suitable for hot/cold water, compressed air, oil, and non-corrosive gases.Verified Source
Key Feature 6
Packer & Central Stockist: Sunrise Sanitary & Hardwares, Chennai.Verified Source
Recommended Application
Bathroom and kitchen plumbing riser isolationApproved
Recommended Application
Confined pipe chases and manifold cabinetsApproved
Recommended Application
Commercial hot water supply linesApproved
Recommended Application
Industrial plant utility and compressed air pipingApproved
