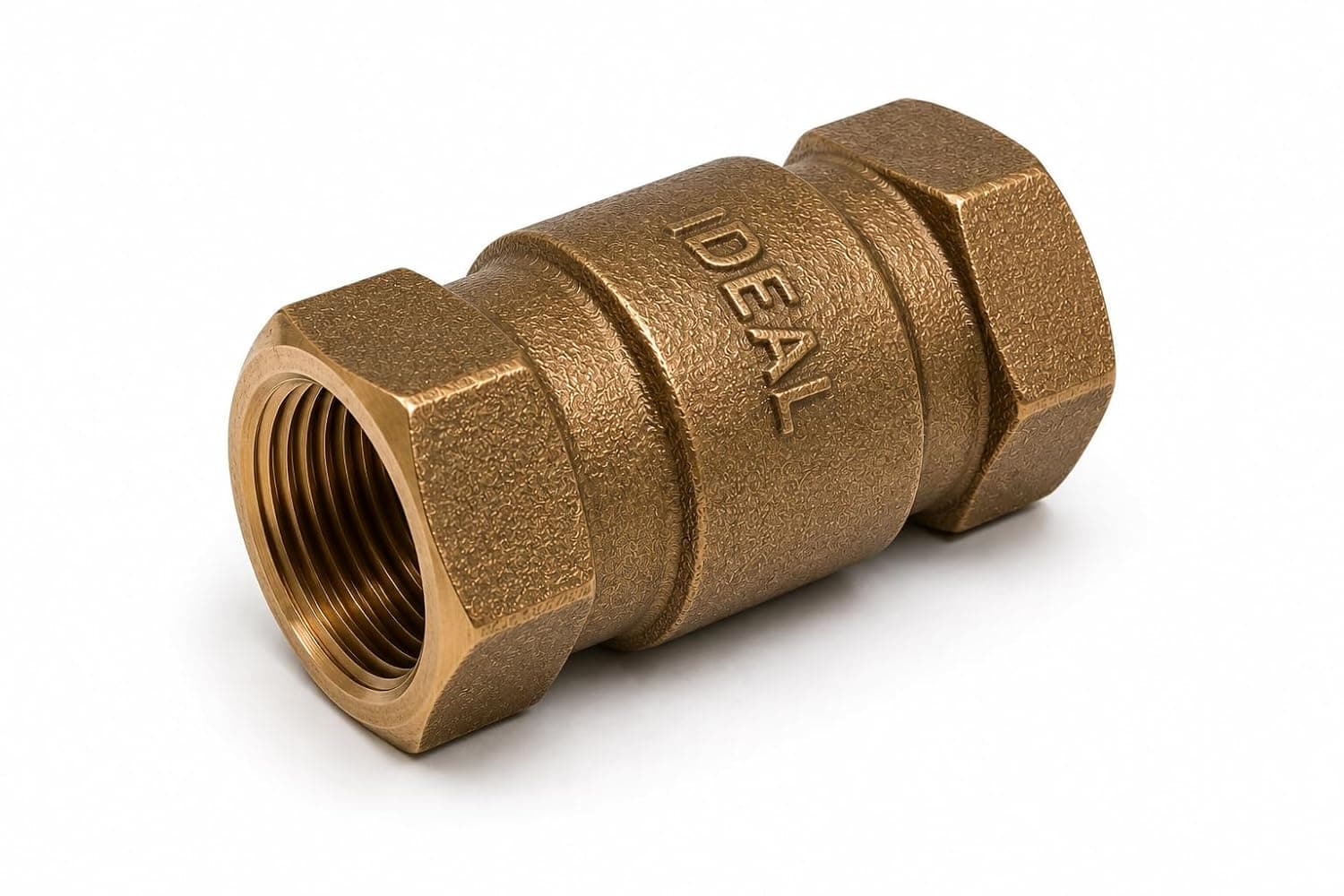

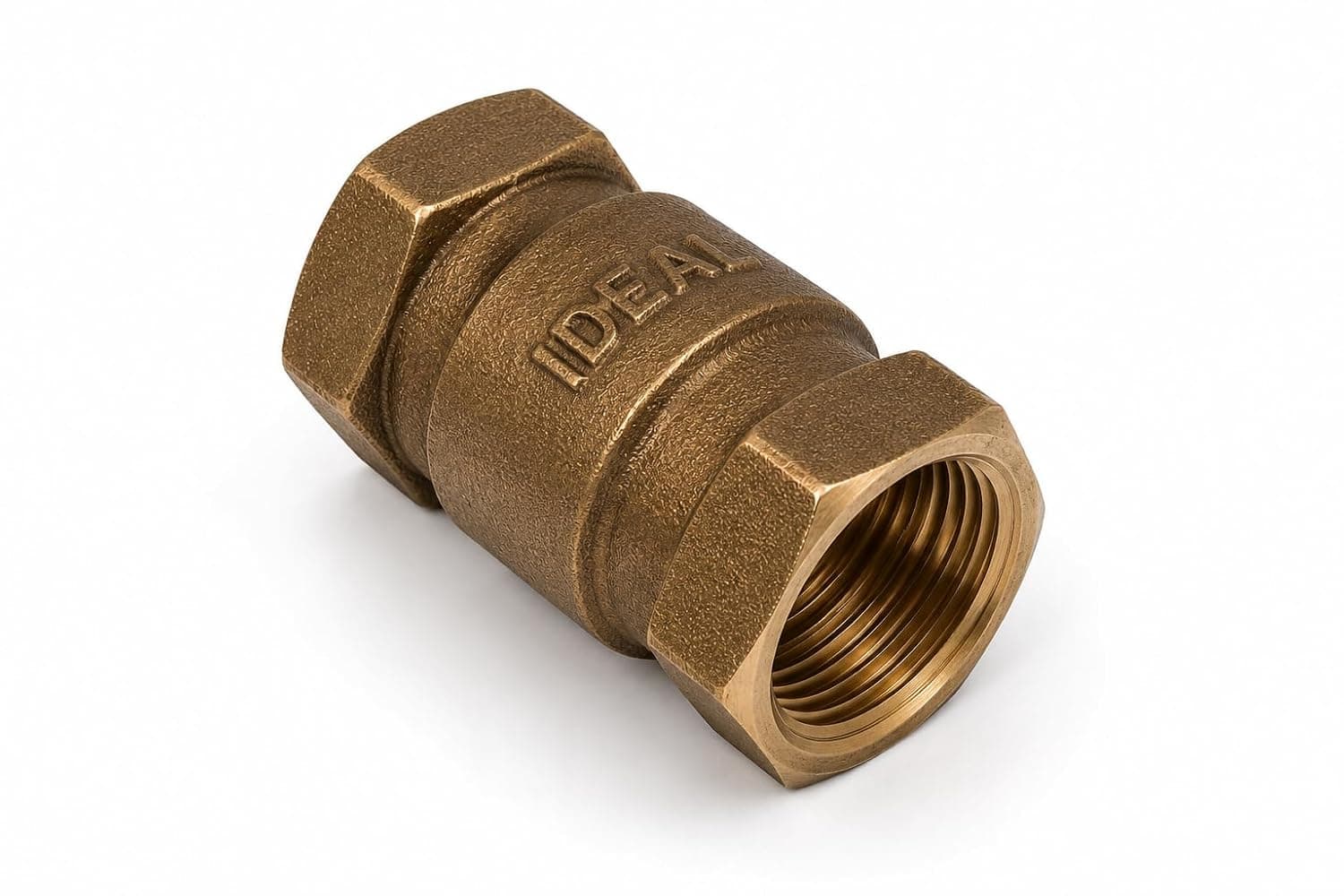

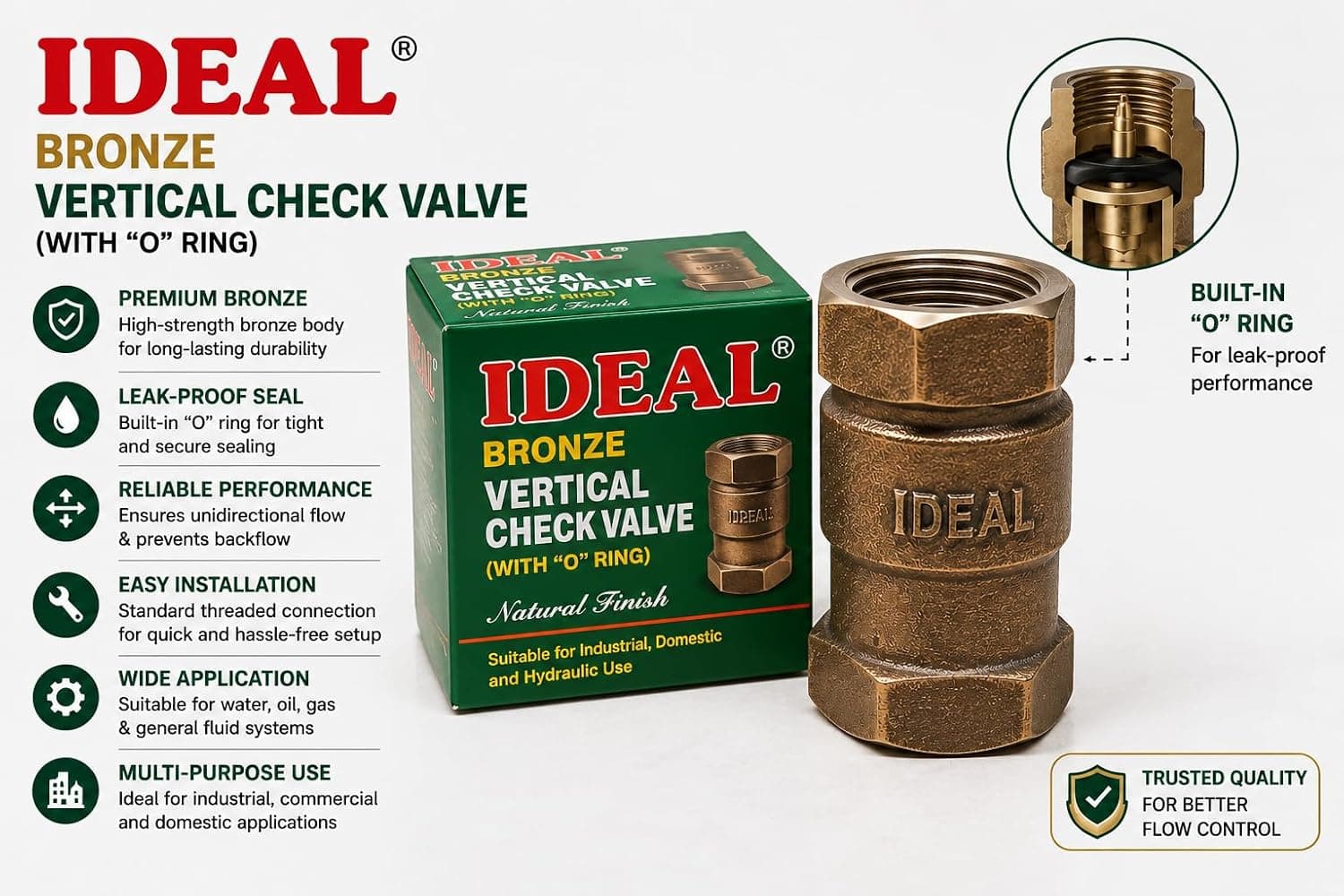

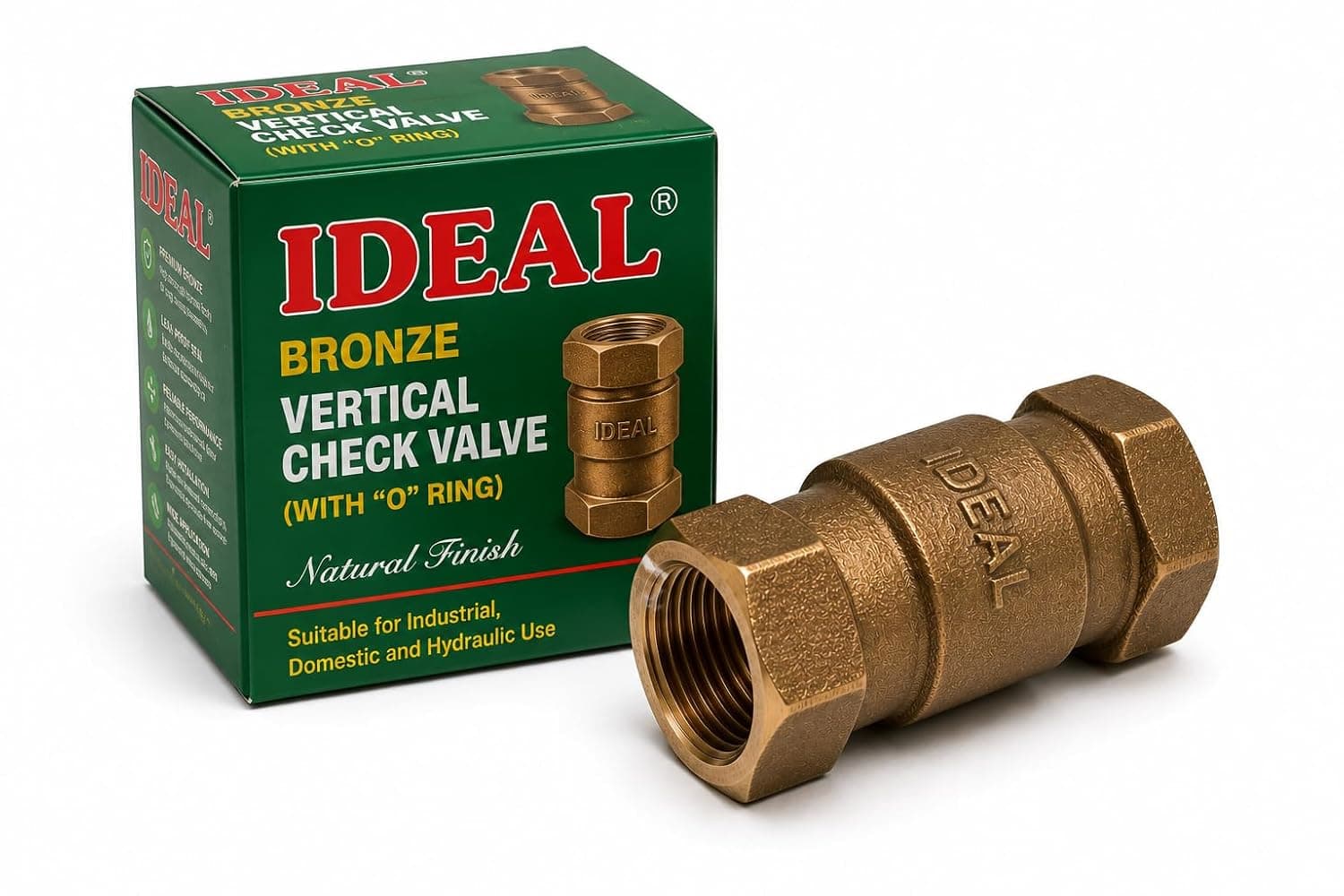

IDEAL® Bronze Vertical Check Valve (Natural Finish)
SKU: SKU-IDL-VCV-ALLModel: IDL-VCV-PROCode: SSH-VLV-IDL-001
Commercial-grade bronze vertical non-return check valve with spring-loaded seat, tested to 1.5 MPa for high-pressure water and industrial piping.
Tested Commercial Grade
Direct Dispatch from George Town / Parrys Hub
Technical Properties & Specifications
Source Verified Parameters
Technical Specifications6 Parameters
Valve TypeVertical Non-Return Check Valve (NRV)
Available Sizes15mm (1/2"), 20mm (3/4"), 25mm (1"), 32mm (1 1/4"), 40mm (1 1/2"), 50mm (2")
Body MaterialHigh-Grade Bronze (Natural Finish)
End ConnectionFemale Screwed (BSP / IS:554)
Hydrostatic Test Pressure1.5 MPa (15 bar / 217 PSI)
Working Temperature-10°C to 120°C
Procurement & Commercial5 Parameters
Approved MakesIDEAL
Brand AvailabilityIDEAL / Sunrise Sanitary & Hardwares
ManufacturerIDEAL
Packer & StockistSunrise Sanitary & Hardwares, Sembudoss St, Chennai - 600001
Amazon ASIN ReferenceB0HHNDY62M (20mm Specimen)
Additional Technical CharacteristicsExtended CMS Parameters
Key Feature 1
High-grade bronze construction with natural finish for superior corrosion resistance.Verified Source
Key Feature 2
Vertical spring-assisted disc ensuring rapid closure and prevention of water hammer.Verified Source
Key Feature 3
Hydrostatically tested to 1.5 MPa (217 PSI) for guaranteed leak-tight performance.Verified Source
Key Feature 4
Precision female threaded ends conforming to IS:554 / BSP for secure pipeline connection.Verified Source
Key Feature 5
Suitable for cold/hot water networks, pump deliveries, and commercial utility risers.Verified Source
Key Feature 6
Packer & Central Stockist: Sunrise Sanitary & Hardwares, Chennai.Verified Source
Recommended Application
Overhead water tank discharge linesApproved
Recommended Application
Booster and submersible pump delivery risersApproved
Recommended Application
Commercial building plumbing columnsApproved
Recommended Application
Industrial non-corrosive fluid systemsApproved
